Description

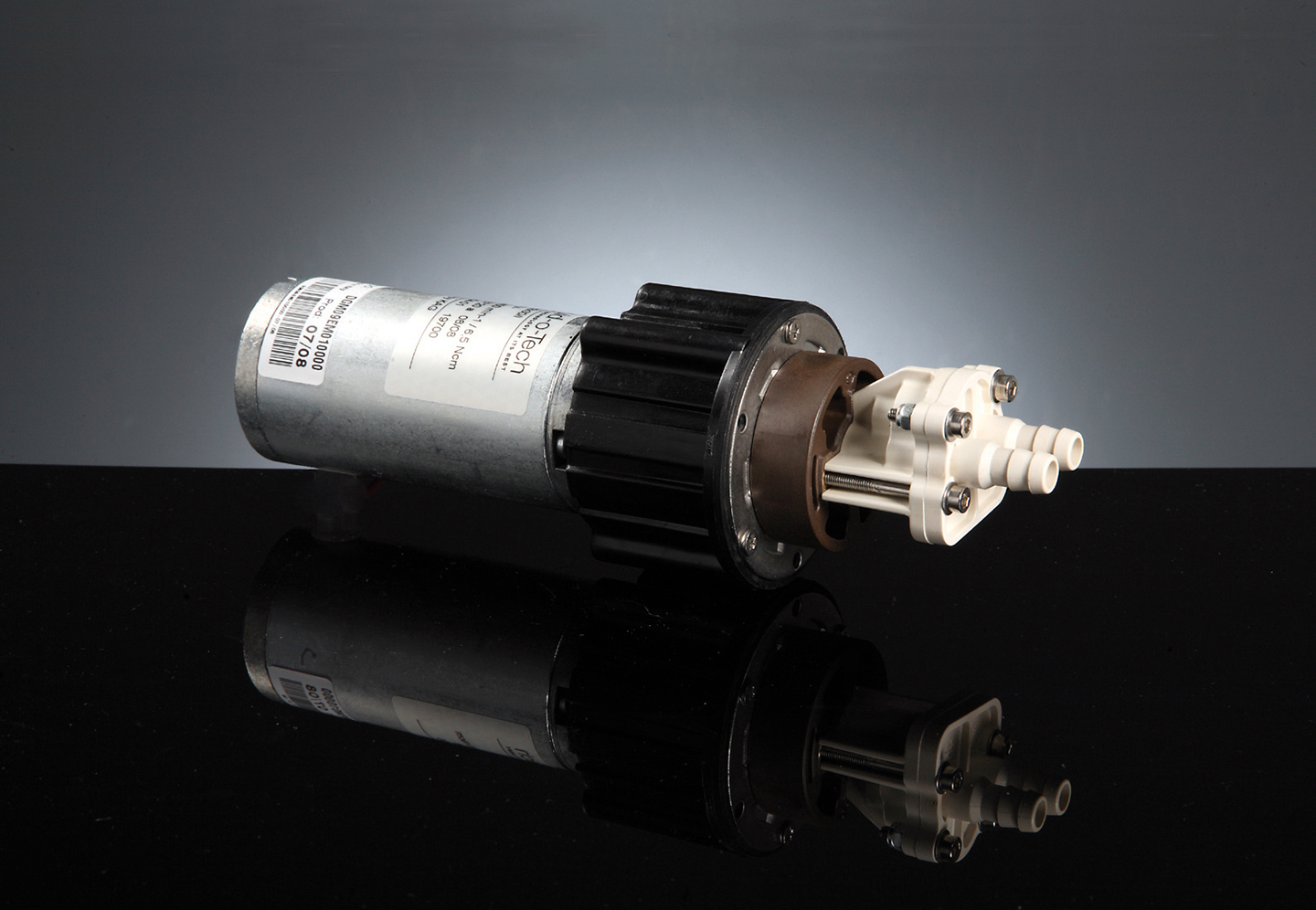

The DGM series magnet drive gear pump-motor units derive from the DGD series. Built to handle clean and relatively viscous fluids at a max temperature of 95 °C (203 °F) with pressure up to 4 bar (58 psi). The pump housing is available in stainless steel or Vectra and the gears are in Vectra. Static seals are available in NBR, EPDM or VITON . The dynamic seal less design is guarantee of reliability. Suction/discharge ports are 8 mm barbed end. The pump drives are available in 12V or 24V brush DC options and in a range of different nominal speeds and powers for intermittent duty use. NSF certified pumps for potable water or fluids for human consumption are also available.
| Technology | Flow Rate (Min) | Flow Rate (Max) | Differential Pressure (Max) | Static Pressure (Max) |
|
|---|---|---|---|---|---|
| PG300 SERIES GEAR PUMPS | External gear pumps | 50 l/h | 140 l/h | 4 bar | 6 bar |
