Description

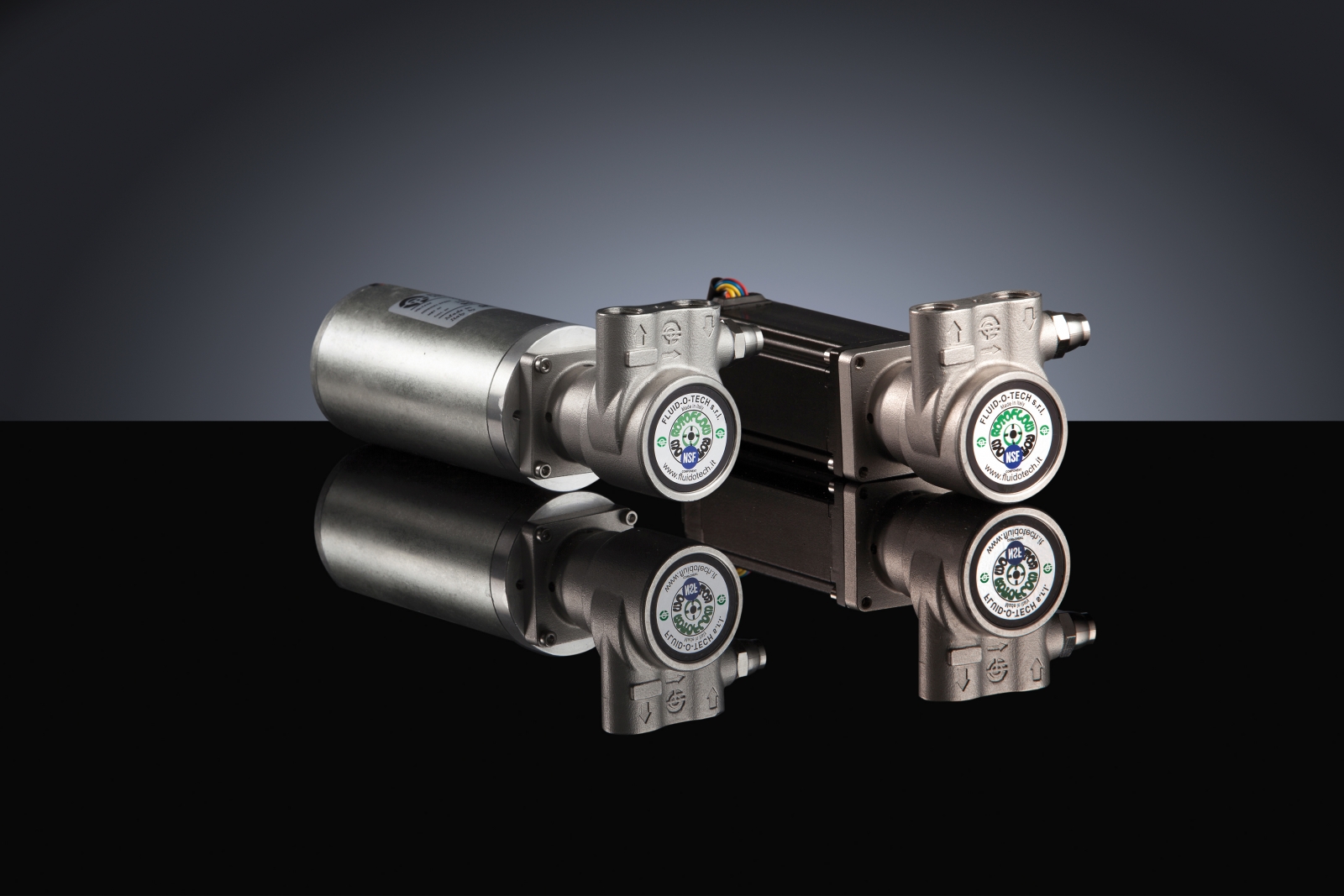

The GA series are the smallest size Fluid-o-Tech rotary vane pumps.The standard configuration includes a brush or brushless DC motor, but AC motors are available as well upon request. The internal parts are in stainless steel and carbon graphite, whereas the housing is in stainless steel. The nominal flow rates range between 30 (8 GPH) and 100 l/h (26 GPH) at 1450 rpm, however the speed may be changed between 500 and 3000 rpm and flow rate will vary proportionally to speed. Pump discharge pressure is up to a maximum of 10 bar (145 psi).
| Technology | Flow Rate (Min) | Flow Rate (Max) | Differential Pressure (Max) | Static Pressure (Max) |
|
|---|---|---|---|---|---|
| GA SERIES VANE PUMPS | Rotary vane pumps | 30 l/h | 130 l/h | 10 bar | 10 bar |
