Description

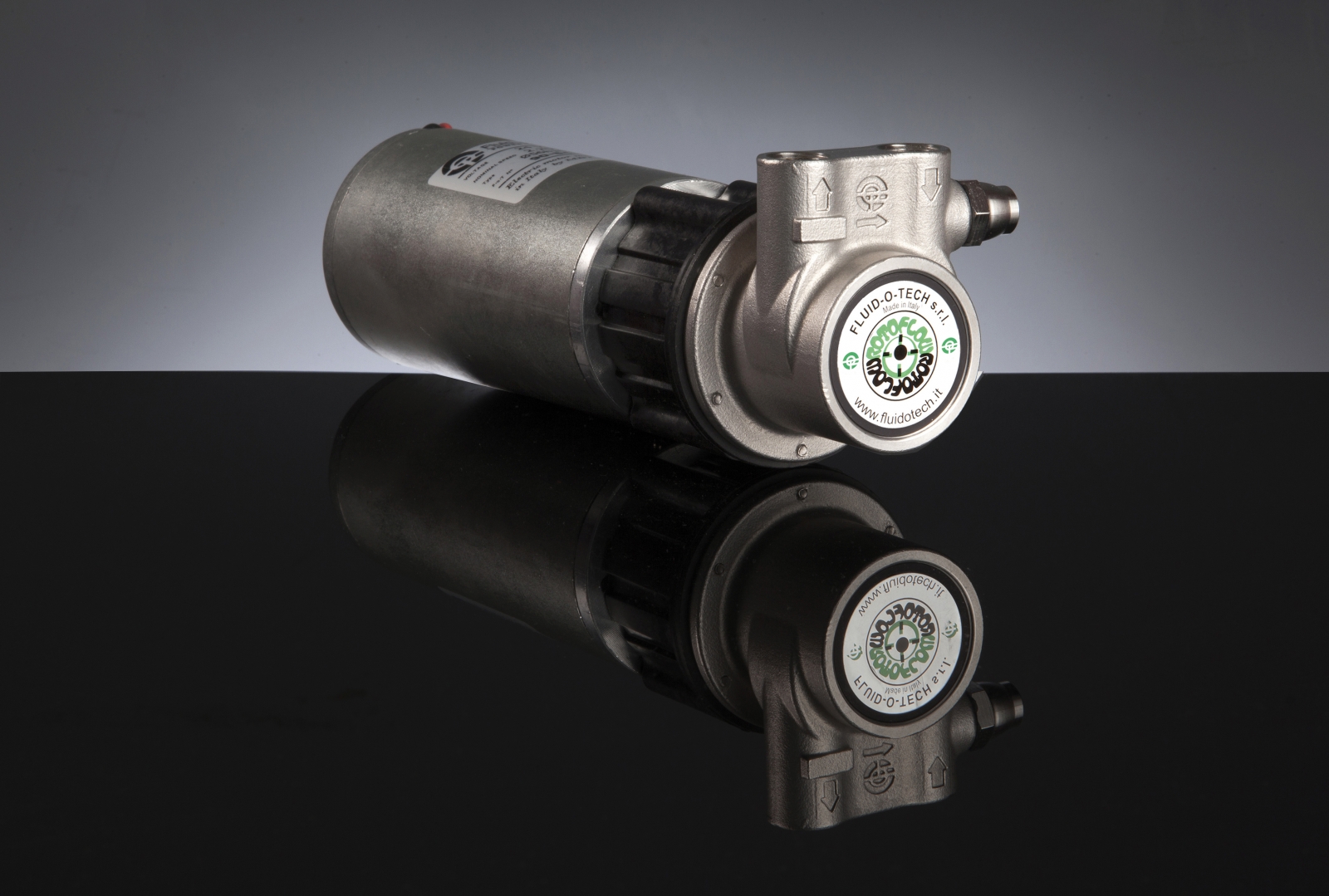

The HA rotary pumps series, the magnetic drive version of the GA pumps series, are made of stainless steel and carbon graphite and are available in a range to cover the low flow rates. The standard configuration includes a brush DC motor. The nominal flow rates range between 70 (18 GPH) and 170 l/h (45 GPH) at 1450 rpm. Pump discharge pressure is up to a maximum of 10 bar (145 psi).
| Technology | Flow Rate (Min) | Flow Rate (Max) | Differential Pressure (Max) | Static Pressure (Max) |
|
|---|---|---|---|---|---|
| HA SERIES VANE PUMPS | Rotary vane pumps | 70 l/h | 170 l/h | 10 bar | 10 bar |
