Description

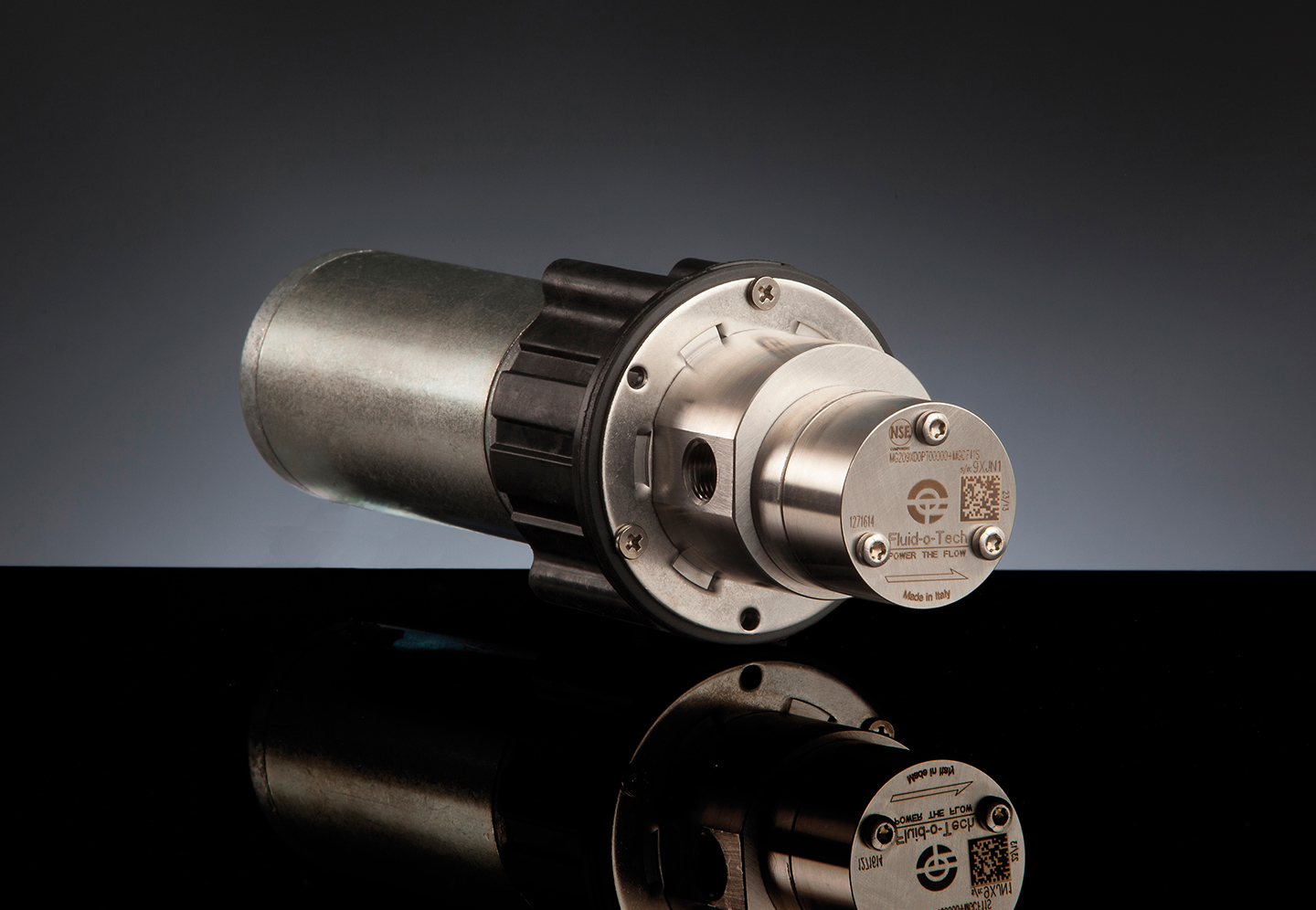

The MGCF04S, and MGCF11S 12 and 24V brush DC drives are robust and built to provide great performance and reliability for intermittent duty applications. They include a pump-to-motor plastic adapter – which thermally separates the pump from the motor – for the Fluid-o-Tech gear pumps of the MG, MS and PG series and a choice of driving magnets of different materials and torque capability. The DC drive allows speed control by varying the voltage and provides a range of performance.The units are capable of a flow up to 190 l/h (50 GPH) and pressure up to 9 bar (130 psi). Pumps are available with 1/8″ NPT or GAS ports and built-in relief valve. Static seals available in EPDM, NBR, PTFE™, Silicon or Viton guarantee full chemical compatibility with a wide range of fluids. The housing of the pump and the internal metal components are in AISI 316 L stainless steel, while gears and bushings are available in PEEK™, or PTFE™. Other materials, as well as a range of driving magnets are available. NSF certified pumps for potable water of fluids for human consumption are also available.
| Technology | Flow Rate (Min) | Flow Rate (Max) | Differential Pressure (Max) | Static Pressure (Max) |
|
|---|---|---|---|---|---|
| PG300 SERIES GEAR PUMPS | External gear pumps | 70 l/h | 190 l/h | 9 bar | 20 bar |
