Description

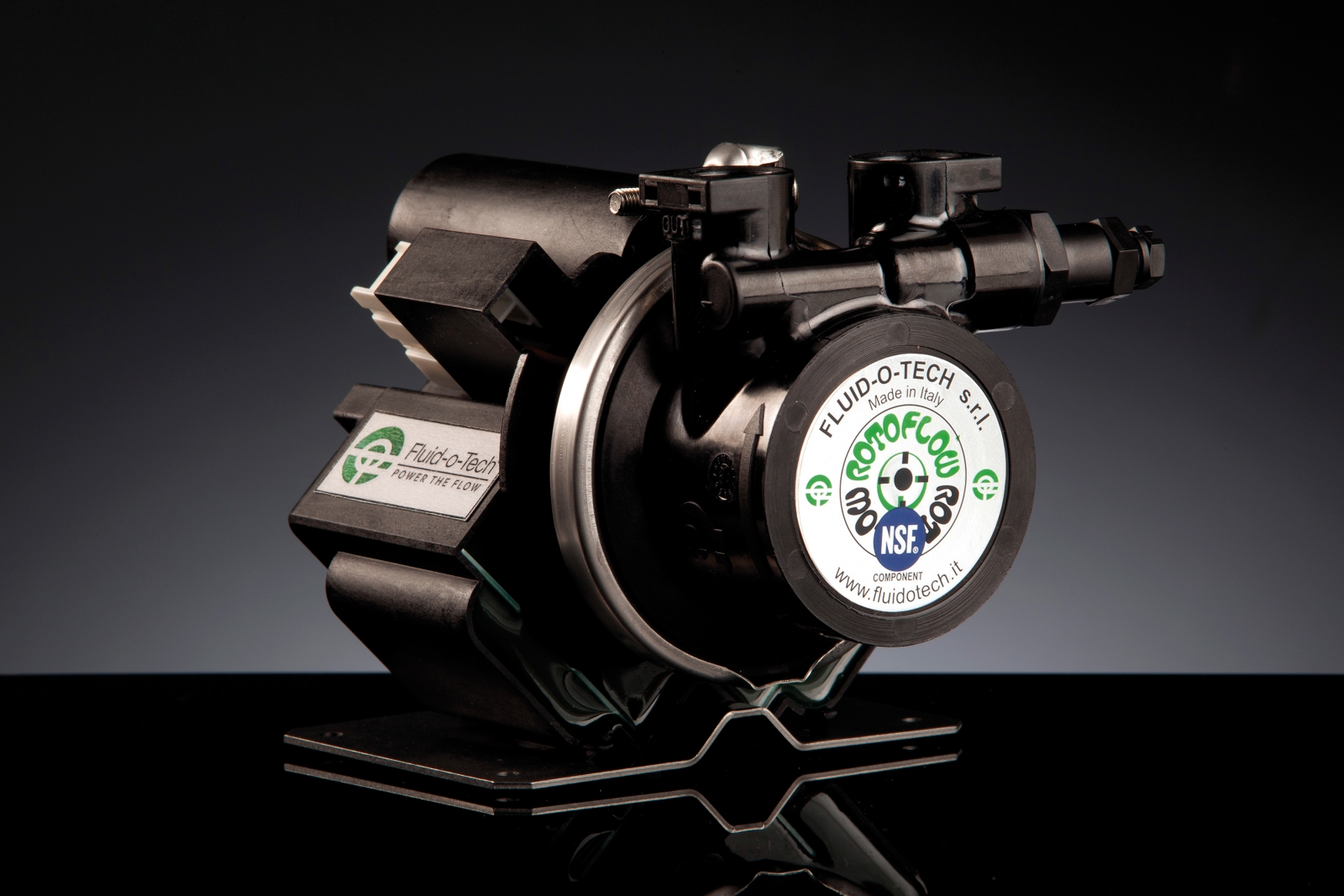

The PMFR series integrates positive displacement rotary vane pumps with a high efficiency single speed motor with a seal-less, magnetic coupling. A magnetic coupling provides extra reliability and extra service life. Pumps housing are in polyphenylene sulfide (PPS) engineering plastic or in stainless steel. Pumps are standard with internal relief valve. The motor is capable of 220 V AC and 50 Hz operation. Pump flow rate is up to a maximum of 115 l/h (30 GPH) at 3000 rpm. Pump discharge pressure is up to a maximum 10 bar (145 psi).
| Technology | Flow Rate (Min) | Flow Rate (Max) | Differential Pressure (Max) | Static Pressure (Max) |
|
|---|---|---|---|---|---|
| PMFR SERIES VANE PUMPS | Rotary vane pumps | 90 l/h | 115 l/h | 10 bar | 10 bar |
