Description

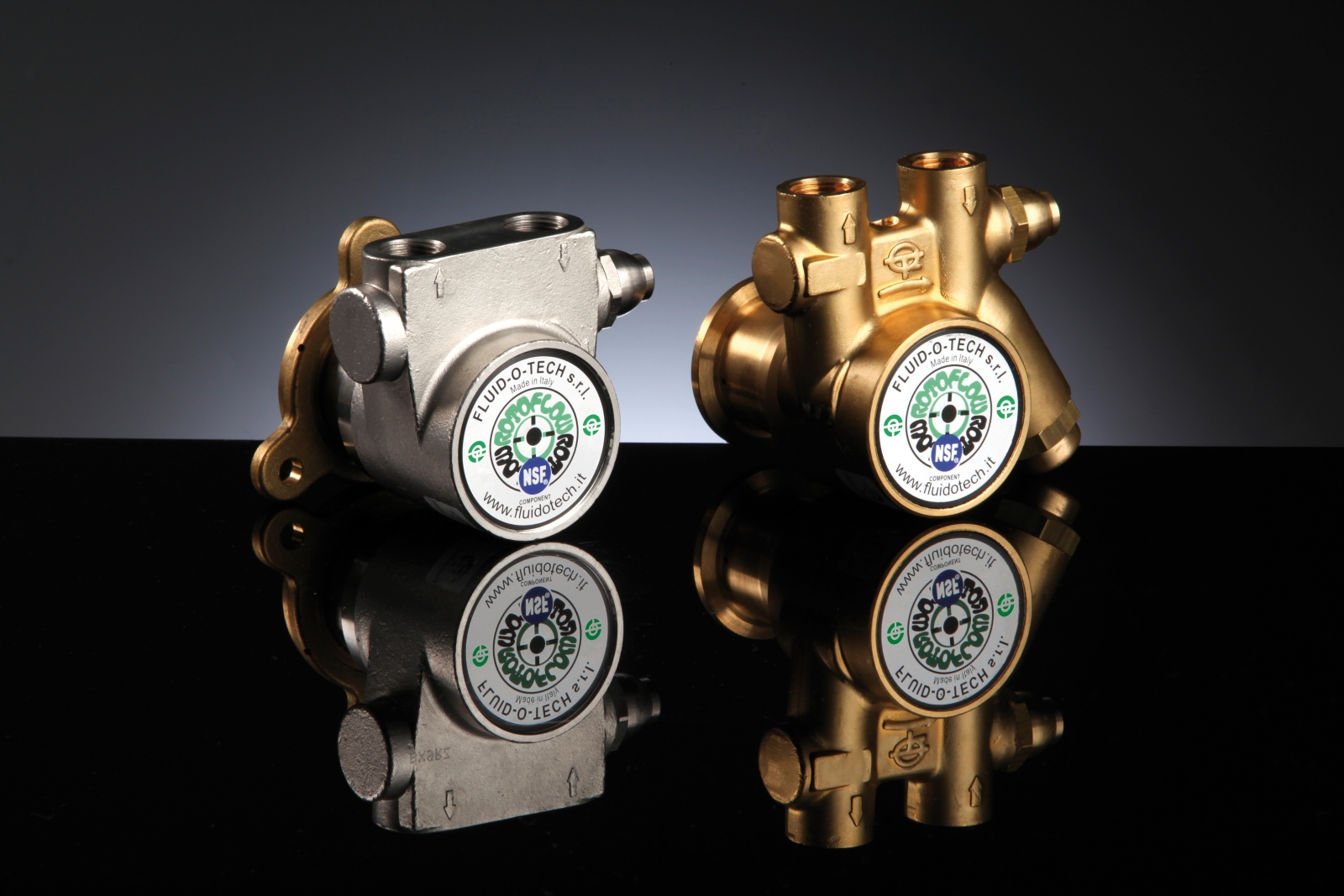

The PO 70-400 series positive displacement rotary vane pumps are available with brass or stainless steel housings with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 70 and 400 l/h at 1450 rpm. Any vane pump of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 16 bar (230 psi). This series mounts directly to NEMA 48Y motors by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
| Technology | Flow Rate (Min) | Flow Rate (Max) | Differential Pressure (Max) | Static Pressure (Max) |
|
|---|---|---|---|---|---|
| PO 70-400 SERIES VANE PUMPS | Rotary vane pumps | 100 l/h | 450 l/h | 16 bar | 20 bar |
